High Power Six-phase Relay Test System

Model: RELAYSTAR-1600

The RELAYSTAR-1600 is all-in-one protection relay test system developed by HAOMAI, quick and easy to use. It can be operated with or without a PC.

The RELAYSTAR-1600 can output 6-phase current(6x0…40A) and 6-phase voltage (6x0…150V) for testing electro-mechanical, solid-state and microprocessor-based protective relays.

The new higher powered voltage-current amplifiers are adopted for RELAYSTAR-1600. The current amplifier delivers maximum compliance voltage to the load constantly during the test, and range changing is done automatically under load. This insures better test results, and saves time by not having to turn the outputs off to change ranges. Constant power output in many cases eliminates the need to parallel or series current channels together to test high burden relays.

Main Features:

1) 6-phase current(6×40A) + 6-phase voltage(6×150V) output

2) Embedded industrial PC with 10.4-inch LCD screen

3) Both local test and PC remote test available

4) Constant power output

5) Steady-state and dynamic testing capability

6) End to end test with in-built GPS

7) Performs transient tests

8) Abundant test modules

Technical Data

Current Generator

Voltage Generator

Auxiliary DC Supply

Binary Inputs

Binary Outputs

In-built Monitoring and Recording

General Generators

Power Supply

Environmental Conditions

Miscellaneous

High Power Six-phase Relay Test System RELAYSTAR-1600 is an excellent choice for testing and commissioning engineers to perform protection relay testing on site.

High Power Six-phase Relay Test System RELAYSTAR-1600 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.

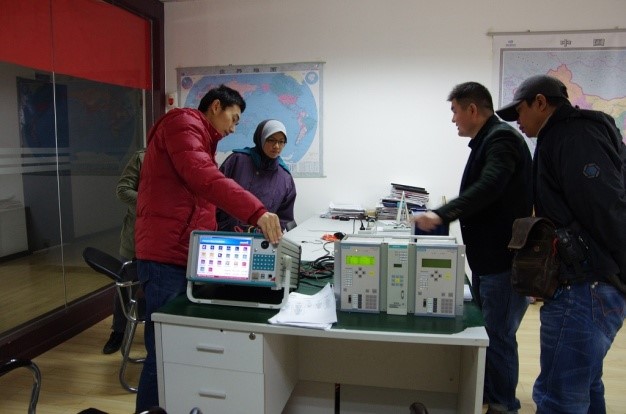

High Power Six-phase Relay Test System RELAYSTAR-1600 is used to test SIEMENS SIPROTEC protection relays. Please refer to the below pictures.
