High Accuracy Six-phase Protection Relay Test Set

Model: RELAYSTAR-H60

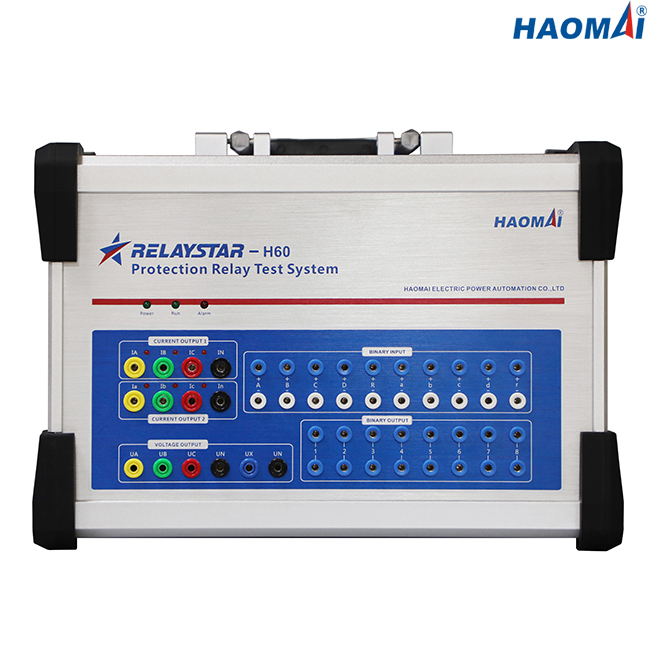

High Accuracy Six-phase Protection Relay Test Set RELAYSTAR-H60 is the portable protection relay test set for testing electro-mechanical, solid-state and microprocessor-based protection relays.

The RELAYSTAR-H60 can output 6-phase current(6x0…32A) and 4-phase voltage (4x0…300V). Each output channel is independent, and the current and voltage magnitude, phase angle and frequency can be adjusted freely.

The AC output accuracy of RELAYSTAR-H60 is much higher, up to 0.05%.

The RELAYSTAR-H60 can be controlled and operated by the RELAYSTAR software running on a laptop with Windows 10 operating system.

Main Features

1) 6-phase current(6×32A) + 4-phase voltage(4×300V) output

2) Higher output accuracy(≤0.05% for AC output)

3) End to end test via in-built GPS

4) In-built monitoring and recording

5) RIO import & export facility

6) Online Vector display

7) Abundant binary inputs and binary outputs

8) Variable battery simulator(adjustable DC output 0-300V)

9) Powerful RELAYSTAR test software

10) Software upgrade free of charge

Technical Data

Current Generator

Voltage Generator

Auxiliary DC Supply

Binary Inputs

Binary Outputs

DC Voltage Measuring Input

DC Current Measuring Input

In-built Monitoring and Recording

General Generators

Power Supply

Miscellaneous

Environmental Conditions

The RELAYSTAR-H60 is powerful protection relay test set for all relay manufactures, switchgear manufactures, power plants, research institutes, universities, commissioning and testing companies etc.
