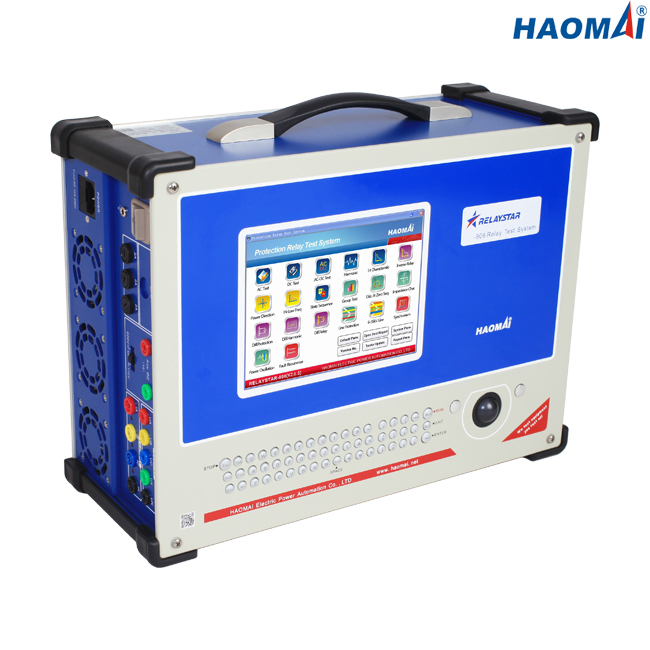

Comprehensive Three-phase Protection Relay Test Set

Model: RELAYSTAR-806

The RELAYSTAR-806 is comprehensive three-phase protection relay test set and commissioning tool. It has 7 channels for output((3I + 4U), and every output channel is independent and simultaneous control of magnitude, phase angle and frequency values.

The RELAYSTAR-806 kit can be independently operated via embedded industrial PC with 8-inch LCD screen, full keyboard and mouse, no PC required. The operator also can connect RELAYSTAR-806 kit to laptop, use RELAYSTAR software running on the laptop with Windows operating system to fully control the RELAYSTAR-806 kit to complete all tests and save the test results into laptop.

Main Features

1) Universal relay test applications

2) 7-channel outputs(3I + 4U)

2) Embedded industrial PC with 8-inch LCD screen, full keyboard and mouse

3) Control and operate with or without PC

4) Independent AUX DC output

5) End to end test with in-built GPS

6) Full functional RELAYSTAR test software

7) RIO file import & export facility

8) Power system model for dynamic testing

9) Online vector display

10) Switch on to fault test(SOTF)

11) Automatic test report creation

12) Software upgrade free of charge

Technical Data

Current Generator

Voltage Generator

Auxiliary DC Output

Binary Inputs

Binary Outputs

General Generators

Power Supply

Miscellaneous

The Comprehensive Three-phase Protection Relay Test Set RELAYSTAR-806 is primarily designed for secondary testing of protection relays. Virtually all types protection relays defined by ANSI/IEEE can be tested. The examples of what RELAYSTAR-806 can test are shown as below table.
