High Power 6-phase Protection Relay Test Set

Model: RELAYSTAR-1600

The RELAYSTAR-1600 is multipurpose 6-phase protection relay test set for testing all generations and types of protection relays, which can output 6-phase current(6x0…40A) and 6-phase voltage (6x0…150V).

The RELAYSTAR-1600 is an excellent choice when you want higher current and power output(6x0…40A, 6x300VA; 1x0…240A, 1x1000VA) for testing high-burden electromechanical relays.

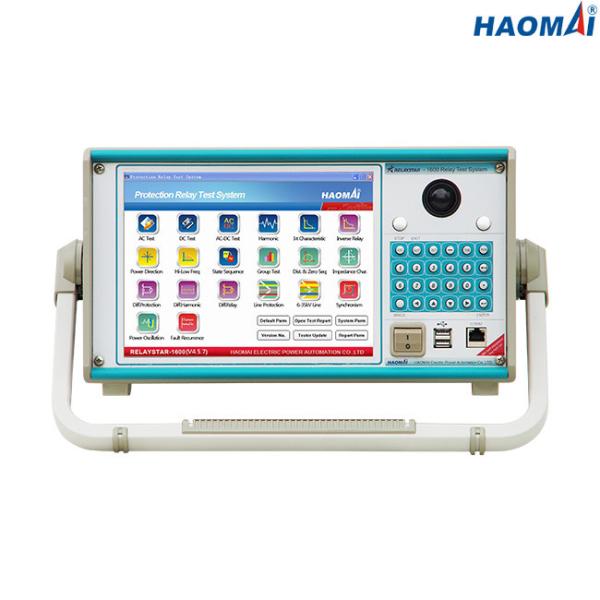

The RELAYSTAR-1600 can be operated without a PC. It combines embedded industrial PC, 10.4-inch full color TFT LCD screen, built-in mouse and keyboard for easier local operation.

High Power 6-phase protection relay test set RELAYSTAR-1600 can be synchronized to perform end-to-end testing with the test sets allocated in different substations through its in-built GPS.

Main Features

1) 6-phase current(6×40A) + 6-phase voltage(6×150V) output

2) Embedded industrial PC with10.4-inch LCD screen

3) Operates with or without a PC

4) High performance amplifiers

5) Higher power output: 1x1000VA@240A

6) End to end test with in-built GPS

7) Excellent RELAYSTAR software for local and remote PC test

Technical Data

Current Generator

Voltage Generator

Auxiliary DC Supply

Binary Inputs

Binary Outputs

In-built Monitoring and Recording

General Generators

Power Supply

Environmental Conditions

Miscellaneous

High Power 6-phase Protection Relay Test Set RELAYSTAR-1600 is the preferred choice for test engineers in cases where excellent transportability is needed and 6-phase current up to 40A are sufficient.

High Power 6-phase Protection Relay Test Set RELAYSTAR-1600 passed the Type Test in China KETOP laboratory accredited under ISO/IEC 17025.

High Power 6-phase Protection Relay Test Set RELAYSTAR-1600 is also calibrated in the third party laboratory accredited under ISO/IEC 17025.

The Type Test Report and Calibration Report are shown as below.
