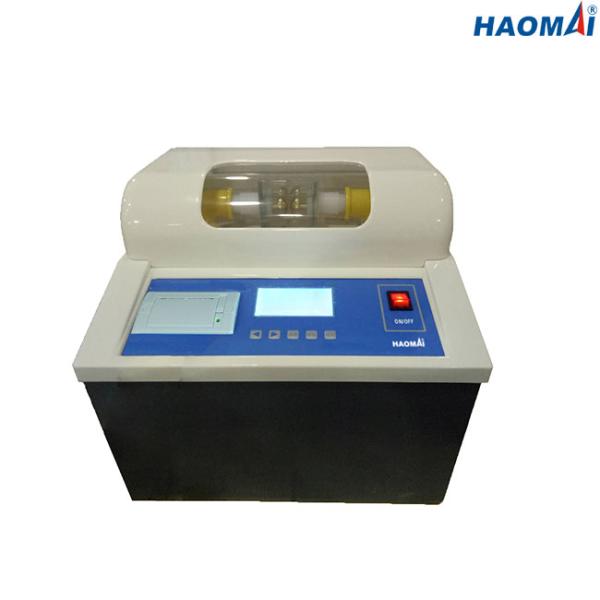

Insulation Oil Dielectric Breakdown Voltage Tester

Model: ODB-100P

Monitoring and maintenance of oil quality is essential in ensuring the reliable operation of oil filled electrical equipment. One of the fundamental tests of oil quality is the breakdown voltage test, which is a measure of the oil’s ability to withstand electric stress.

Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P performs accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. The maximum AC voltage output can reach 100kV.

Main Features

●Suitable for mineral, ester and silicon oils

●Able to measure insulating oil breakdown voltage

●Maximum AC voltage output: 100kV

●Automated analysis and reporting

●Breakdown test of user-defined

●Able to save test results on-board

●Able to print test results via built-in thermal printer

●More suitable for field test due to light weight

Technical Data

◇Output voltage: AC 0~100kV

◇Voltage measurement accuracy: ±3%

◇Resolution:0.1kV

◇Stir time: 0~120s(adjustable)

◇Stand time: 0~15min(adjustable)

◇Interval of boosting: 0~5min (adjustable)

◇Max. test times: 9

◇Voltage slew rate: 0.5kV/s~5kV/s (adjustable)

◇Able to save 100 test results on-board

◇Able to print test results via built-in thermal printer

◇Communicate with computer with RS232 interface

◇Power supply: AC 220V/230V±10%, 50Hz/60Hz optional

◇Power consumption: 200VA

◇Others

dimension: 465x385x425mm(18.31x15.16x16.73 in)

weight: 30kg(66.14 lb)

◇Environmental Conditions

storage temperature: -30 ºC to +65 ºC

humidity: <95% RH at 40 ºC storage

operating temperature: 0 ºC to +50 ºC

◇Safety Qualifications and EMC

Safety: designed in accordance with IEC61010-1

EMC: light industrial IEC 61326-1 Class B

Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P is reliable tool for performing accurate breakdown voltage tests on mineral, ester and silicon insulating liquids.
