    ISO9001 Universal Relay Test System , Multipurpose Relay And IED Test Kit

    Ask Lasest Price
    Brand Name : HAOMAI
    Model Number : RELAYSTAR-7000
    Certification : ISO9001:2015, Type Test Report, Calibration Report
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 400 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    ISO9001 Universal Relay Test System , Multipurpose Relay And IED Test Kit

    Universal Relay Test System


    Model: RELAYSTAR-7000

    The RELAYSTAR-7000 is a multipurpose and portable test system capable of testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, motor overload relays and IEDs based on IEC 61850.

    The unit can be operated either manually via the built-in industrial PC and 9.7-inch TFT LCD screen user interface, or run RELAYSTAR remote software on a PC.

    The built-in user interface incorporates a large, easy to read full color high resolution, high definition, TFT LCD screen display, which displays metered values such as AC and DC Amperes, AC and DC Volts, and Time in both seconds and cycles. Depending on the type of test selected, other values may be displayed, such as Phase Angle, Frequency, Watts, VA, or Power Factor.


    Main Features

    1)All-in-one design for testing all types of protection relays and IEDs

    2)Both local test and PC remote test available

    3)Convertible 6 current channels and 6 voltage channels

    4)In-built monitoring and recording

    5)Dynamic GPS satellite synchronized end-to-end testing capability

    6)Four time synchronization modes: in-built GPS, IRIG-B code, PPS and IEEE1588

    7)IEC 61850 testing capability


    Technical Data

    General Current and Voltage Outputs

    Current GeneratorSetting range6-phase AC(L-N): 6x0…30A
    DC(L-N): 6x0…±10 A
    Power6-phase AC(L-N): 6x450VA at 30A
    DC(L-N): 6x120VA at 10A
    AccuracyAC:±1mA(≤0.2A), ≤0.1% (0.2~30A)
    DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A)
    Resolution1mA
    Voltage GeneratorSetting range6-phase AC(L-N): 6x0…150V
    DC(L-N): 6x0…±160V
    Power6-phase AC(L-N): 6x80VA at 150V
    DC(L-N): 6x80VA at 160V
    AccuracyAC:±2mV(0.2~2V), ≤0.1% (2~150V)
    DC:±10mV (0.5~5V), ≤0.2% (5~160V)
    Resolution1mV
    General GeneratorsFrequencyrange: 0~1200Hz
    accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),<20mHz(450~1200Hz)
    resolution: 0.001Hz
    Phaserange: -360° ~+360°
    accuracy: 0.1°
    resolution: 0.01°
    Harmonicsuperposition order: 2~24 times
    distortion: ≤0.5%

    Ethernet Communication Interfaces

    Mode10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover)
    Number of port2
    Type of interfaceRJ45
    Status indicationLED lights

    Optical Fiber Communication Interfaces

    Mode100Base-FX (100Mbit, optical fiber, full duplex)
    Number of port8
    Type of interfaceLC
    Fiber type62.5/125μm(multi-mode fiber)
    Wavelength1310nm
    Transmission distance>1km
    Status indicationLED lights

    FT3 Interfaces

    Number of port9 (8 for transmitting, 1 for receiving)
    Type of interfaceST
    Fiber type62.5/125μm (multi-mode fiber)
    Wavelength850nm

    Binary Inputs

    Number8
    Typepotential-free contact or idle contact (automatic identification)
    Threshold characteristics“0”: 0~6V; “1”:12V~250V

    Binary Outputs

    Number4
    Typeidle contact
    Break capacity250VAC/0.5A; 250VDC/0.2A

    In-built Monitoring and Recording

    Monitoringcurrents and voltage outputs
    Recordinganalog outputs, binary inputs/outputs status
    Modereal time monitoring, no external wiring is required
    Recording lengthunlimited (until the internal memory is full)

    Power Supply

    Nominal input voltagecustomized (AC230V/120V±10%, 1-phase)
    Nominal frequency50/60 Hz
    Rated current10A at 230V / 12A at 120V
    ConnectionStandard AC socket (IEC 60320)

    Environmental Conditions

    Operation temperature0 ... +50 °C (+32 ... +122 °F)
    Storage temperature-25 ... +70 °C (-13 ... +158 °F)
    Humidity rangerelative humidity 5 ... 95 %, non-condensing
    VibrationIEC 60068-2-6(20m/s2 at 10 ... 150 Hz)

    Miscellaneous

    Weight19.5kg(42.99 lb)
    Dimensions (W x H x D, without handle)405×295×250mm(15.94x11.61x9.84 in)

    Universal Relay Test System RELAYSTAR-7000 is most suitable in environments where numerical and communication based protection. With its extraordinarily high precision, it is also an ideal source based calibrator for all kinds of measurement devices such as PQ meter and PMU.


    Universal Relay Test System RELAYSTAR-7000 has perfect protection. All current and voltage outputs are fully overload and short circuit proof and protected against external high-voltage transient signals and over temperature.

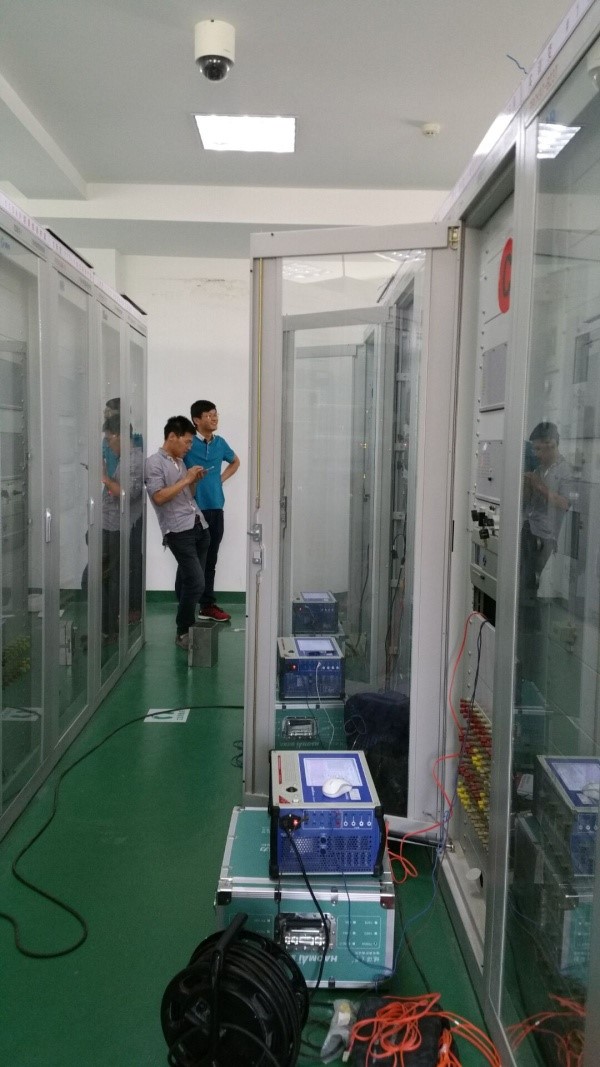

    Universal Relay Test System RELAYSTAR-7000 won the tender from SGCC(State Grid Corporation of China) many times. The field test photos are shown as below pictures.
