Automatic Three-phase Secondary Injection Test Set
Model: RELAYSTAR-806

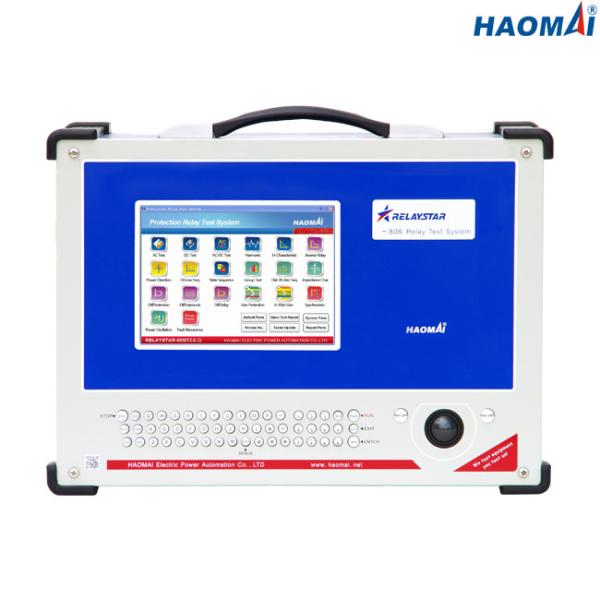

The RELAYSTAR-806 is a powerful and automatic three-phase secondary injection test set. The locally and PC controlled test kit generates high precision signals using multiple DSP technology. Its powerful current outputs(3x40A) and voltage outputs(4x150V) allow to test any type of protection relays including electromechanical relays.
The RELAYSTAR-806 can be operated directly from the front panel by means of a large color graphical display, mouse, keypad and function keys. Test results are automatically saved and then downloaded to the PC via USB port for final storage or printing.
The Ethernet interface allows to control the RELAYSTAR-806 kit by advanced RELAYSTAR test software running on the PC with Windows operating system.
The end-to-end test can be performed by built-in GPS module and external antenna, which allows to synchronize test start of two RELAYSTAR-806 kits.
The protection of RELAYSTAR-806 kit from delivery problems is provided by this robust transport case with handle on the top and wheels on the bottom.

Main Features
1) Local control via embedded industrial PC, keyboard and 8-inch colored display
2) Remote control with the advanced RELAYSTAR test software
3) Simultaneously available: 3 Current and 4 Voltage plus 1 battery simulator outputs
4) Independent adjustment of current / voltage outputs
5) Capable of stepping or ramping the current / voltage
6) High current outputs : 3x40 A, 1x120A
7) Able to perform end-to-end test via built-in GPS module
8) RIO file import & export facility
9) Automatic test report
10) Light and easy to carry

Technical Data
Current Generator

Voltage Generator

Auxiliary DC Supply(Battery Simulator Output)

Binary Inputs

Binary Outputs

General Generators

Power Supply

Miscellaneous

Three-phase current generator of Automatic Three-phase Secondary Injection Test Set RELAYSTAR-806 has the features as following:
- Three independent current sources, with a common neutral.
- Type of connection: safety banana sockets.
- For each output, a light turns on when the output is applied.
- Output ranges, and corresponding power and resolution.
- Independent adjustment of current outputs.
- Output frequency: 0 to 1200Hz.
- Output adjustable from zero to the maximum value.
- Possibility of step changing the value of the output.
