    44.75lb Protection Relay Test Equipment With 8 Inch LCD Screen

    Ask Lasest Price
    Brand Name : HAOMAI
    Model Number : HME-1200
    Certification : ISO9001:2015
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 400 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

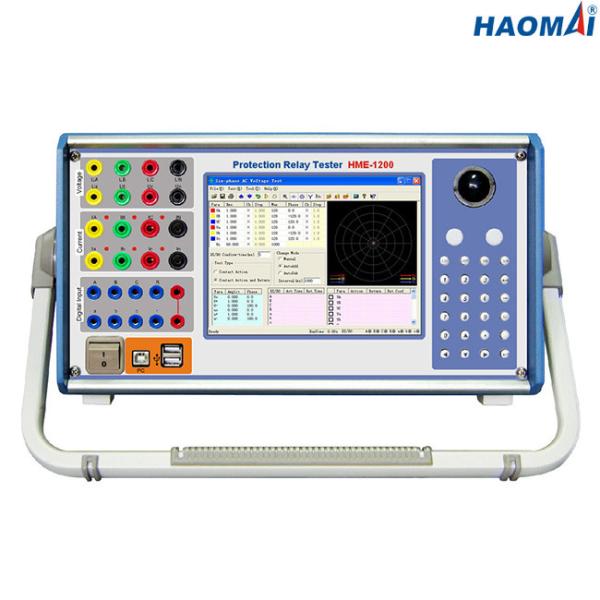

    44.75lb Protection Relay Test Equipment With 8 Inch LCD Screen

    Economical 6-phase Protection Relay Test Set
    Model: HME-1200
    The HME-1200 is all-in-one protection relay test set, which outputs 6-phase current(6×30A) & 6-phase voltage(6×120V) for testing conventional protection relays.
    The embedded industrial PC with 8-inch LCD screen, keyboard and trackball mouse are adopted to make HME-1200 run without a PC. It is also available to connect HME-1200 to PC for completing various tests.
    The new high-fidelity linear amplifier is used for HME-1200 to avoid high and medium frequency interference on the test site, and ensure smooth and accurate waveform from large current to small current.

    Main Features
    ● Most cost-effective 6-phase relay tester
    ● 6-phase current(6×30A) + 6-phase voltage(6×120V) output
    ● Embedded industrial PC with 8-inch LCD screen
    ● Both local test and PC remote test available
    ● Adopt high fidelity and high reliability linear amplifier
    ● Abundant test modules for testing various protection relays

    Technical Data
    Current Generator

    Setting range6-phase AC(L-N)6x0…30A
    3-phase AC(L-N)3x0…60A
    1-phase AC(LL-LN)1x0…180A
    DC(L-N)6x0…±10 A
    Power6-phase AC(L-N)6x300VA at 30A
    3-phase AC(L-N)3x450VA at 60A
    1-phase AC(LL-LN)1x1000VA at 180A
    DC(L-N)6x70VA at 10A
    AccuracyAC: ≤0.2%
    DC: ≤0.5%
    Resolution1mA


    Voltage Generator

    Setting range6-phase AC(L-N)6x0…120V
    3-phase AC(L-N)3x0…240V
    DC(L-N)6x0…±160V
    Power6-phase AC(L-N)6x80VA at 120V
    3-phase AC(L-N)3x100VA at 240V
    DC(L-N)6x70VA at 160V
    AccuracyAC: ≤0.2%
    DC: ≤0.5%
    Resolution1mV


    Auxiliary DC Supply

    Voltage range110V/220V(max.1.5A)
    Powermax.165VA/330VA


    Digital Inputs

    Number8
    Input characteristicsidle contact or potential-free contact
    Threshold characteristics“0”:0~6V; “1”:12V~250V
    Max. measuring time999999.999s
    Time accuracy±1ms
    Time resolution1ms


    Digital Outputs

    Number8
    Typeidle contact
    Break capacity250VAC/0.5A, 250VDC/0.2A


    General Generators

    Frequencyrange: 0~1000Hz
    accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1000Hz)
    resolution: 0.01Hz
    Phaserange: -360° ~+360°
    accuracy: 0.1°
    resolution: 0.1°
    Harmonicsuperposition order: 2~20 times
    distortion: ≤0.5%


    Power Supply

    Nominal input voltagecustomized (AC230V/120V±10%, 1-phase)
    Nominal frequency50/60 Hz
    Rated current10A at 230V / 12A at 120V
    Connectionstandard AC socket (IEC 60320)


    Environmental Conditions

    Operation temperature0 ... +50 °C (+32 ... +122 °F)
    Storage temperature-25 ... +70 °C (-13 ... +158 °F)
    Humidity rangerelative humidity 5 ... 95 %, non-condensing
    VibrationIEC 60068-2-6(20m/s2 at 10 ... 150 Hz)


    Miscellaneous

    Weight20.3kg(44.75 lb)
    Dimensions (W x H x D, without handle)470×550×280mm(18.50x21.65x11.02 in)
    Connection port2 USB ports, 1 serial port


    The HME-1200 is the economical 6-phase Protection Relay Test Set for testing conventional protection relays.
